Cable Float Switch

About images
  • Special polymer for cable ensures that there is cohesion bonding between cable and Plastic layer.
  • Statistics says 96% of float failure happen when water enters float through this point.
  • BlueSeas's Float perfectly sealed feature do not allow water to enter in float thus increasing the reliability of float multifold times.
  • The advance manufacturing technology and testing processes ensures near to zero manufacturing defects.
  • Each Float is tested prior to dispatch.

  • Specific weight: 0,95 -1,05 or according to specification
  • Max. temperature: 80°C
  • Breaking capacity: 1mA / 4V -5A / 250V*
  • Switch point: 10°
  • Protective system: IP 68 / 2 bar
  • Equipment group: ||
  • Cable cross section: 3x0.35 mm2
  • Height / diameter: 180 / 100 mm
  • Housing quality: Polypropylen (PP)
  • Housing Colour: blue ,yellow
  • Cable quality: TPK

  • Level measurement for almost all liquid media
  • Pump and level control and monitoring for distinct filling levels
  • Chemical, petrochemical, natural gas, offshore, shipbuilding, machine building, power generating equipment, power plants
  • Process water and drinking water treatment, food and beverage industry

  • Simple construction & easy to handle.
  • Large range of application due to the simple, proven functional principle
  • For harsh operating conditions, long service life
  • Explosion-protected versions

Fluid Level Sensor

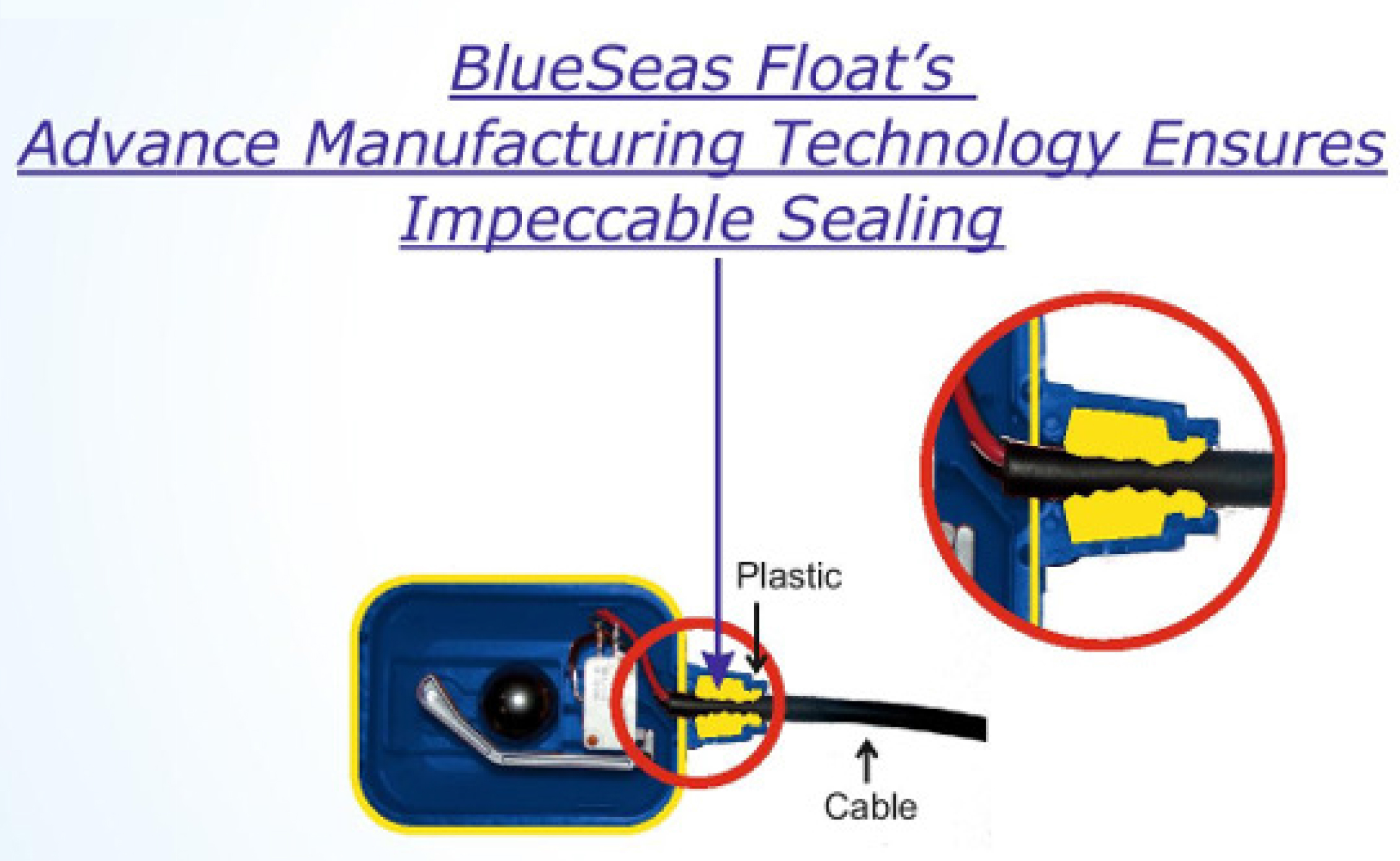

Advanced Manufacturing Technology Ensures Impeccable Sealing

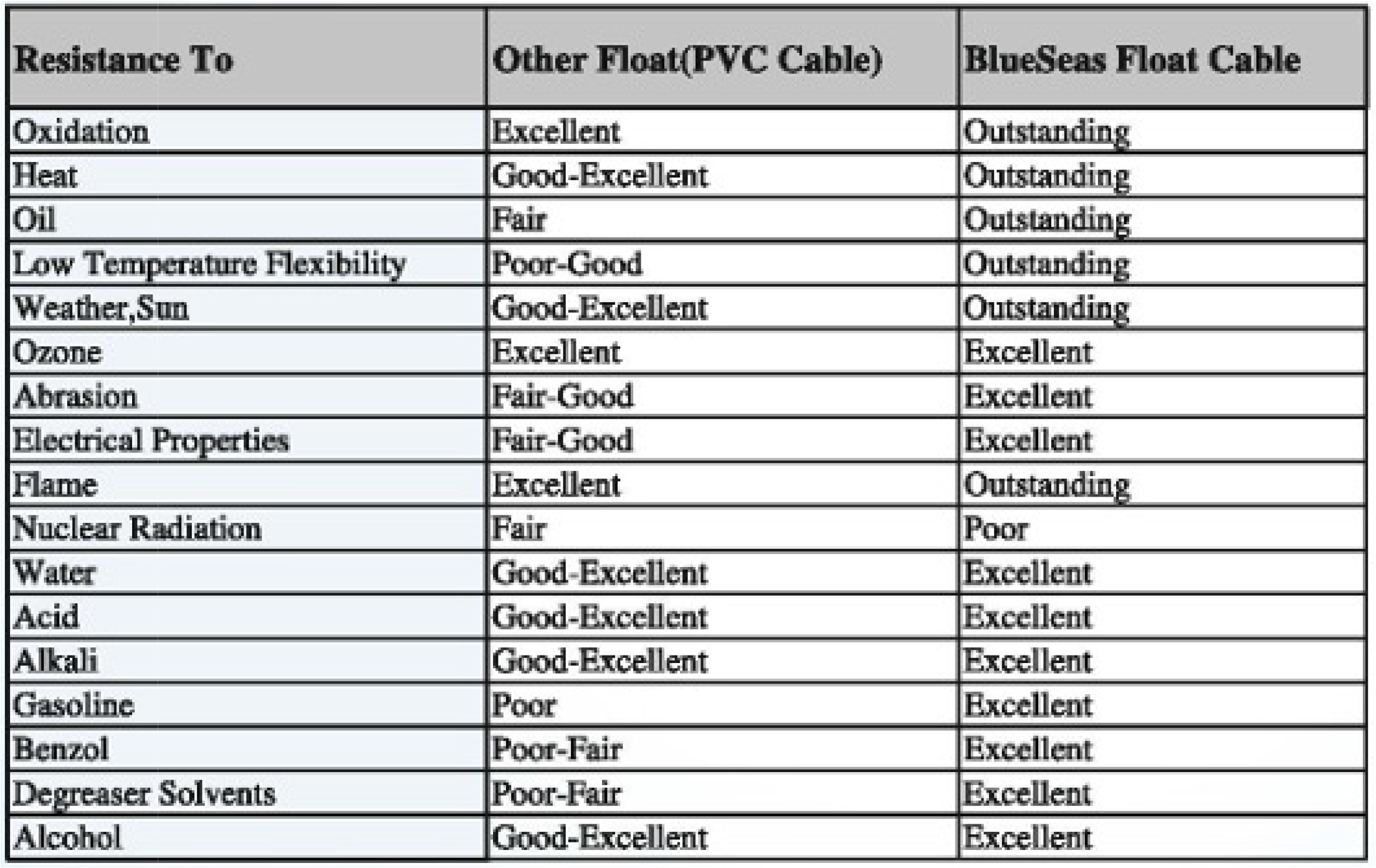

Cable Chemical Resistance
